| Material： |
AISI316
|
2205 Duplex
|
|
Code ：
|
S141.5.158B
|
S151.5.158B
|
| Quantity: | |
|---|---|

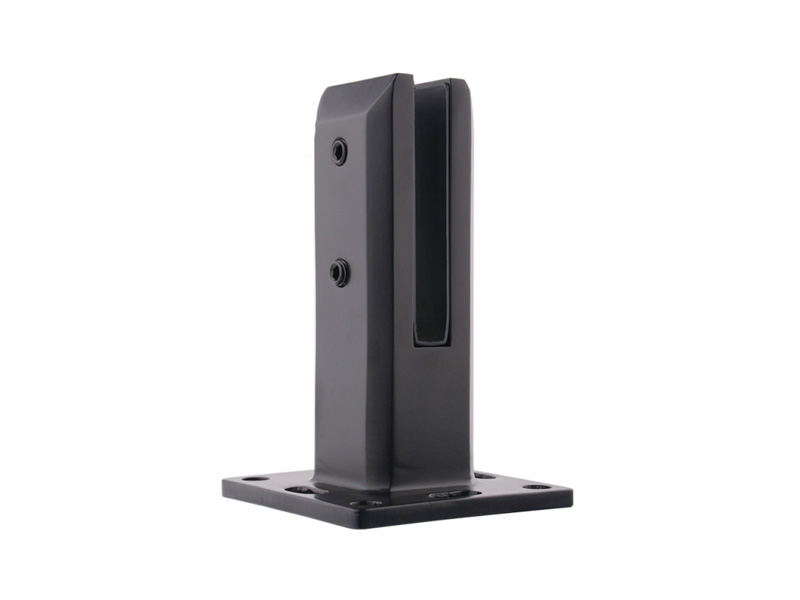

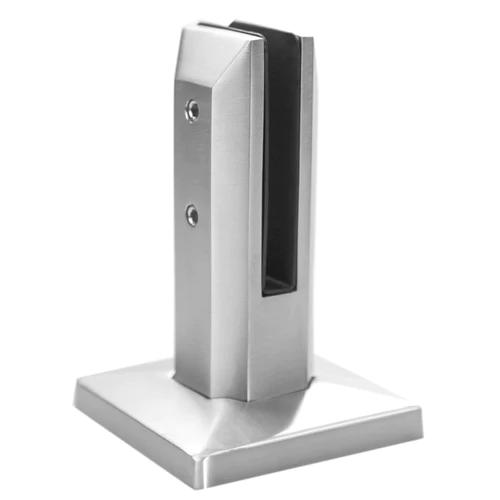

Pool Fence Square Base Plate Spigots 48x47x158mm
● A Floor Clamp for Fixing Glass
● Friction mount ,no hole required on glass panel
● Surface : Satin ,Polish/Black Matt finish
● Fit glass thickness :8mm-15mm
● Material: AISI316/ 2205 Duplex
● Usage : Glass Pool fence ,balustrade ...outdoor
● High Anti-Corrosive and Superior strength ability
● Easy installation ,End cap fixed to the ground by
4 countersunk holes for M8 screws
Dimensions | ||
| Diameter Ø (mm) | H (mm) | Depth(mm) |
48 | 158 | 100 |
Pool Fence Square Base Plate Spigots 48x47x158mm
● A Floor Clamp for Fixing Glass
● Friction mount ,no hole required on glass panel
● Surface : Satin ,Polish/Black Matt finish
● Fit glass thickness :8mm-15mm
● Material: AISI316/ 2205 Duplex
● Usage : Glass Pool fence ,balustrade ...outdoor
● High Anti-Corrosive and Superior strength ability
● Easy installation ,End cap fixed to the ground by
4 countersunk holes for M8 screws
Dimensions | ||
| Diameter Ø (mm) | H (mm) | Depth(mm) |
48 | 158 | 100 |
